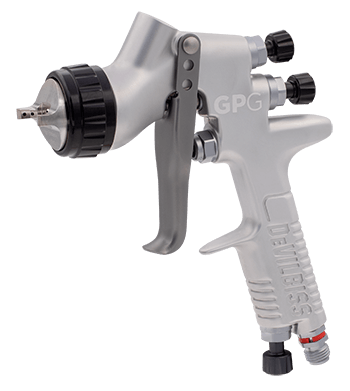

GPG Gravity Spray Gun

DeVilbiss has been at the forefront of developing spray guns specific to applications around the body shop, including meeting the market’s demand for a cost-effective, multi-purpose spray gun and automotive paint gun. The DeVilbiss GPG addresses this requirement by providing solid performance that is durable and an exceptional value.

The anodized, drop-forged aluminum gun body of the GPG provides renowned ergonomics together with lightweight aluminum controls and smooth trigger action. It’s this legendary combination of fit, feel and performance that makes the DeVilbiss brand the professional automotive refinisher’s preferred choice.

The high-efficiency and HVLP air caps have been developed to provide excellent atomization of a wide range of automotive refinish paints and coatings. The large array of fluid nozzles offers a wide range of flow rates allowing for rapid application rates for a multitude of coatings including clearcoats, basecoats, sealers, primers, enamels, synthetics and other common commercial paints.

Features:

  • Lightweight design delivers a uniform spray pattern and atomization spray distribution for an exceptional quality finish that professional painters demand
  • Range of advanced air cap technologies for excellent application performance with the latest waterborne and solventborne coatings
  • Ergonomic handle design with reduced trigger travel to decrease operator fatigue
  • Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings
  • Drop-forged aluminum, anodized gun body with removable air baffle for a longer working life
  Air Cap Needle/Nozzle Gauge Cup Type
  GPG2 1.3, 1.5, 1.8 HAV-501 900ml, ALUMINUM
  GPG2 1.3, 1.5, 1.8 HAV-501 560ML, ACETAL-WHITE
  GPG2 1.8, 2.2 - 900ml, ALUMINUM
  7E7 1.2, 1.3, 1.4 - 900ml, ALUMINUM
  GPG2 1.3, 1.4, 1.5 HAV-501 900ml, ALUMINUM
  7E7 1.3, 1.4 HAV-555 -
  7E7 1.3, 1.4 HAV-555 900ml, ALUMINUM
  7E7 1.2, 1.3 HAV-555 -
  7E7 1.2, 1.3 HAV-555 900ml,ALUMINUM
  PR10, PR30 1.4, 1.6 - 900ml, ALUMINUM
  PR10, PR30 1.8, 2.0 - 900ml, ALUMINUM
  PR10, PR30 2.5 - 900ml, ALUMINUM
  PR10, PR30 UV1, UV2 - 560ML, ACETAL - BLACK



Air Cap Offerings
  Recommended Inlet Pressure Max Air Consumption Fan Pattern Size Nozzle Sizes
Air Cap Atomization Type Applications PSI BAR SCFM SLDM in mm
7E7 High Efficiency Basecoats, Clearcoats 16-22 1.1-1.5 10.8 305 9.5-10.5 240-265 1.2-1.4mm
GPG2 HVLP Basecoats, Clearcoats 22-26 1.5-1.8 15.9 450 11.5-12.0 290-310 1.2-2.2mm
C86 Conventional Basecoats, Clearcoats 29-44 2.0-3.0 10.6 300 10.5-11.5 270-290 1.4-1.8mm
C30 Conventional Basecoats, Clearcoats 29-58 2.0-4.0 10.8 305 9.5-10.5 240-270 1.4-1.8mm
PR10 High Efficiency Primers 26-29 1.8-2.0 12 340 10.5-12.0 265-305 1.4-2.5mm
PR30 HVLP Primers 17-21 1.2-1.4 16 450 11.0-13.0 280-330 1.4-2.5mm
GPG Gravity
Part Number Description Replaces Part No. Description
905012 GPG GRAVITY (GPG2, 1.3, 1.5, 1.8, CUPPED) FLG-670 FINISHLINE SOLVENT BASED VALUE KIT (HVLP 1.3, 1.5, & 1.8)
905013 GPG GRAVITY (GPG2, 1.3, 1.5, 1.8, CUPPED) FLG-671 FINISHLINE WATERBORNE VALUE KIT (HVLP 1.3, 1.5, & 1.8)
905014 GPG GRAVITY (GPG2, 1.8, 2.2, CUPPED) FLG-678 FINISHLINE PRIMER GUN VALUE KIT (HVLP 1.8 & 2.2)
905015 GPG GRAVITY (7E7, 1.2, 1.3, 1.4, CUPPED) GFG-670 PLUS GRAVITY GUN & CUP
905016 GPG GRAVITY (GPG2, 1.3, 1.4, 1.5, CUPPED) GTI-620G GTI HVLP GRAVITY GUN KIT (1.3, 1.4, 1.5, #2000)
905019 GPG GRAVITY (7E7, 1.3, 1.4, UNCUPPED) 703661 TEKNA® COPPER HE UNCUPPED (1.3, 1.4, 7E7)
905020 GPG GRAVITY (7E7, 1.3, 1.4, CUPPED) 703662 TEKNA® COPPER HE GUN/CUP (1.3, 1.4, 7E7)
905021 GPG GRAVITY (7E7, 1.2, 1.3, UNCUPPED) 703675 TEKNA® COPPER HE UNCUPPED (1.2, 1.3, 7E7)
905022 GPG GRAVITY (7E7, 1.2, 1.3, CUPPED) 703676 TEKNA® COPPER HE GUN/CUP (1.2, 1.3, 7E7)
905026 GPG GRAVITY (PR10, PR30, 1.4, 1.6, CUPPED) 704174 TEKNA® PRIMER GUN/CUP (1.4, 1.6, PR10, PR30)
905027 GPG GRAVITY (PR10, PR30, 1.8, 2.0, CUPPED) 704175 TEKNA® PRIMER GUN/CUP (1.8, 2.0, PR10, PR30)
905028 GPG GRAVITY (PR10, PR30, 2.5, CUPPED) 704182 TEKNA® PRIMER GUN/CUP (2.5, PR10, PR30)
