Designed to Optimize Air Flow for Top Spray Gun System and Air Tool Performance

Hose Fitting Chart

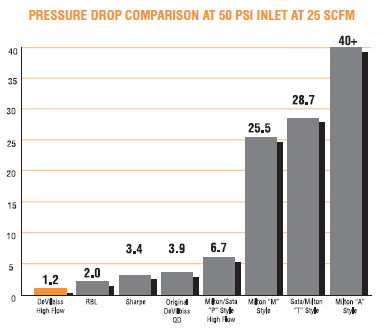

The chart above shows test data at 25 SCFM using:

  • DeVilbiss high flow HC-4720 coupler, HC-4419 stem
  • RBL 611 coupler, 612 stem
  • Sharpe 8320 coupler, 8330 stem
  • Original DeVilbiss P-HC-4120 coupler, P-HC-201 stem
  • Milton/Sata " P" style 1804 coupler, 1810 stem
  • Milton " M" style S715 coupler, S727 stem
  • Sata/Milton " T" style 784 coupler, 786 stem
  • Milton " A" style S775 coupler, S777 stem

Hose Fittings

Reusable Connections

Hose Size and Type

Fits DeVilbiss
Hose No.		 Size I.D. Size O.D. Connection Thread Size Connection No.
H-1957
H-1975-1		 1/4" 1/2" 1/4" NPS (F)
3/8" NPS (F)		 P-HC-4523
P-HC-4543
H-1921 5/16" 5/8" 1/4" NPS (F)
1/4" NPS (M)		 P-HC-4527
P-HC-4599
H-1973-1
H-1958		 3/8" 11/16" 1/4" NPS (F)
3/8" NPS (F)
1/4" NPT (M)		 P-HC-4528
P-HC-4548
P-HC-4955

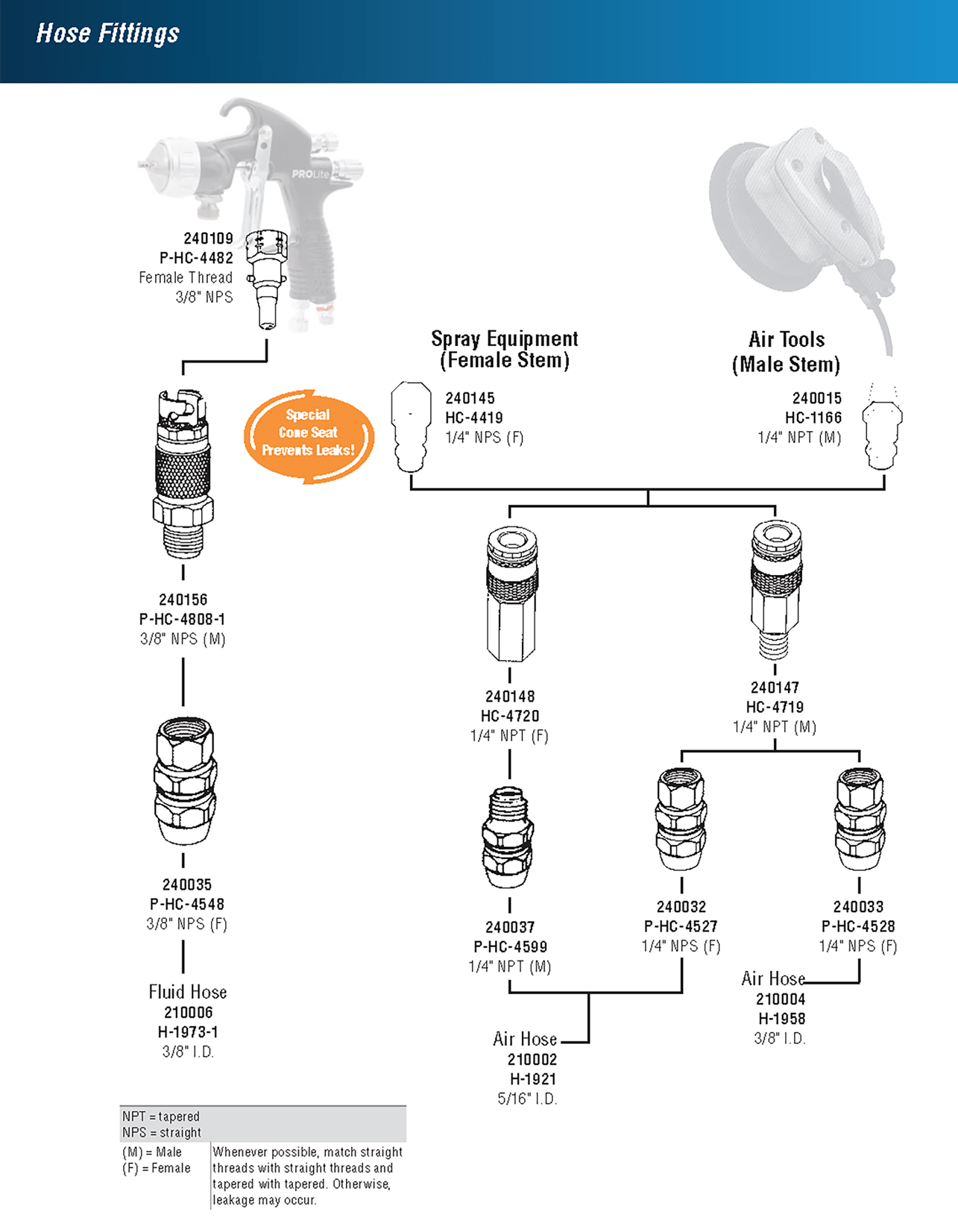

Quick Disconnects - High Flow Ball and Ring Lock Type

(For use wih HVLP Spray Equipment)

Connection No. Order No. Thread Size
HC-4719 (A) 240147 1/4" NPT (M)
HC-4720 (B) 240148 1/4" NPT (F)
HC-1166 (C) 240015 1/4" NPT (M)
HC-4419* (D) 240145 1/4" NPS (F)

*Designed for spray guns. Special cone seat prevents leaks!

Nipples (MBE) Male Both Ends

Part No. Straight Type Male Thread
AD-31 1/4" NPS 1/4" NPS
H-2008 1/4" NPS 1/4" NPT
H-1446 3/8" NPS 3/8" NPS
AD-11 3/8" NPS 3/8" NPT

Adapters

Part No. Straight Type
Male Thread		 Female Thread
AD-404 1/4" NPS 3/8" NPS
P-H-4105 3/8" NPS 1/4" NPS

Valves - Ball Type

Part No. Thread
VA-540 3/8" NPS (M) x 3/8" NPT (M)
VA-542 1/4" NPS (M) x 1/4" NPT (M)
VA-595 1/2" NPT (M) x 1/2" NPT (M)

Coupler

Part No. Thread
SSP-69 1/4" x 1/4" NPT (F)
