View all specifications for our automotive paint gun kits below.

Finish Coat and Primer Spray Gun Kit Specifications:

  • 30 PSI inlet pressure delivers 10 PSI air cap pressure at 13 CFM air volume
  • Air inlet: 1/4" NPS

Detail Spray Paint Gun Specifications:

  • 30 PSI inlet pressure delivers 10 PSI air cap pressure at 8 CFM air volume
  • Air inlet: 1/4" NPS
  Kit Guns Included Fluid Tip Cup(s) Included Accessories Included
  Painting & Touch Up Finish Coat Detail 1.3, 1.0, 1.8 One 600 cc (20 oz.) One 250 cc (8.5 oz.) Cleaning brush, wrench, air adjusting valve with gauge
  2-Gun Painting & Priming Finish Coat Primer 1.3, 1.8, 1.5 Two 600 cc (20 oz.) Cleaning brush, wrench, air adjusting valve with gauge
  3-Gun Painting Finish Coat Primer Detail 1.3, 1.8, 1.0 Two 600 cc (20 oz.) One 130 cc (4 oz.) Cleaning brush, wrench, air adjusting valve with gauge

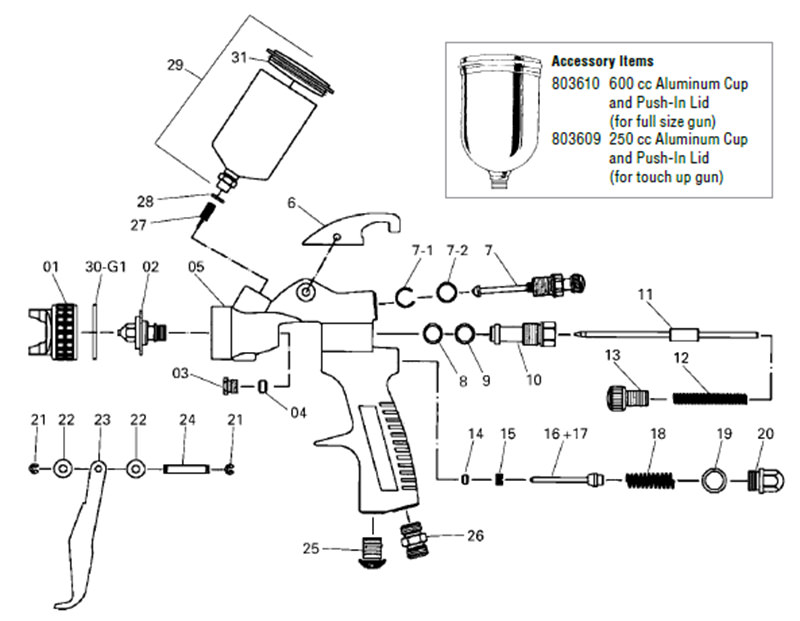

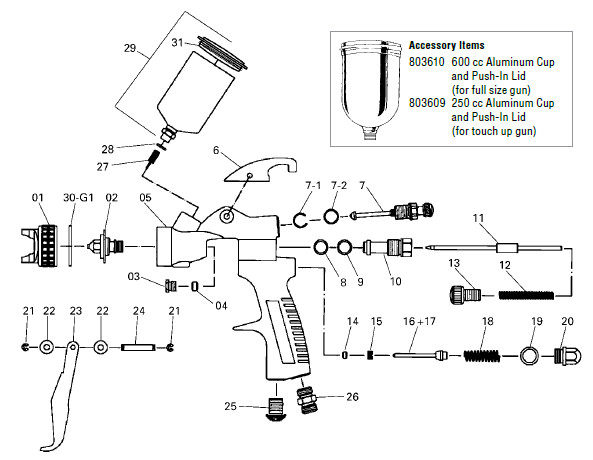

Starting Line Gravity Gun Parts View

Ref. No. Order No. Model No. Description Parts Req.
1 Air Cap W/Ring 1
2 Fluid Nozzle 1
3 Nut 1
4 Gasket 1
5 Gun Body 1
6 Hook 1
7 Fan Control 1
7-1 C-Clip 2
7-2 O-Ring 2
8 Gasket 1
9 O-Ring 1
10 Housing 1
11 Paint Needle 1
12 Spring 1
13 Knob, Fluid Control 1
14 Gasket 1
15 Screw 1
16 + 17 Valve Stem Complete 1
18 Spring 1
19 O-Ring 1
20 Air Valve Nut 1
21 E-Ring 2
22 Washer 2
23 Trigger 1
24 Trigger Stud 1
25 Air Control 1
26 Air Inlet Fitting 1
27 Filter 1
28 Gasket for Fitting 2
29 802346 600cc Aluminum Cup & Lid 1
  802347 250cc Aluminum Cup & Lid 1
29-1 Lid 1
29-G1 Gasket for Lid 1
30-G1 Gasket for Air Cap 1

Download Parts List



HVLP Spray Guns

Spray guns are an efficient way to apply paint to surfaces, but using the correct type for your application is crucial to getting the results you want. Traditional spray guns are a little too aggressive for certain surfaces, such as automobiles. You’ll end up wasting a lot of your paint on overspray, and won’t achieve the fine finish your ride deserves.

HVLP spray guns are the perfect solution. They offer precision control and efficiency, providing a fine and even spray pattern with less overspray.

What are HVLP Spray Guns?

HVLP stands for High Volume, Low Pressure. HVLP spray guns use a high volume of air at low pressure to atomize paint or other coatings and deliver a smooth and controlled finish with less overspray. HVLP guns are popular in the automotive industry, and widely used in woodworking, furniture, and other DIY projects.

The HVLP paint gun works by drawing air from an air compressor through a turbine or fan. The air is then forced through a nozzle, which creates a vacuum that draws paint from a reservoir into the air stream. The air and paint are then mixed and atomized, creating a fine mist that is sprayed onto the surface.

Benefits of HVLP Guns

HVLP spray guns offer several advantages over traditional spray guns, including:

  • Reduced Overspray. HVLP guns produce a fine mist of paint, resulting in minimal overspray and less wasted paint. The paint you do use ends up on your car instead of the driveway or surrounding bushes!
  • Enhanced Finish. Because the paint is atomized more evenly, HVLP guns provide a fine, smooth, and even finish that is ideal for achieving professional-grade results.
  • Improved Transfer Efficiency. HVLP spray guns boast 80% – 90% transfer efficiency, offering better paint coverage with minimal waste. Airless sprayers average only 50% paint transfer efficiency, making HVLP guns more cost-effective.
  • Reduced Health Risks. HVLP spray guns produce less mist and fumes, reducing the risk of inhaling harmful solvents. The lower pressure mitigates the risk of skin injuries that may occur with traditional airless sprayers.
  • Environmental Friendliness. The reduced overspray and improved transfer efficiency contribute to a more eco-friendly painting process.

HVLP Spray Gun Applications

HVLP spray guns are versatile tools suitable for a wide range of applications, including:

  • Painting and refinishing cars, boats, and other vehicles, including basecoats, clearcoats, and touch-ups
  • Painting furniture and other home decor
  • Applyings stains and finishes to wood
  • Applying primers and sealers

Choosing the Right HVLP Paint Gun

When selecting an HVLP automotive spray gun, consider the following factors:

  • Nozzle Size. The nozzle size determines the size of the spray pattern. Different nozzle sizes are suitable for different types of coatings; smaller nozzles produce a finer finish, while larger nozzles create a wider spray pattern. Choose a nozzle size that matches your intended application.
  • Air Pressure. The recommended air pressure for HVLP spray guns is typically between 10 and 30 psi. Using too much air pressure will result in overspray, while using too little air pressure can lead to a poor finish. Ensure your air compressor can provide the necessary air pressure for the spray gun to operate optimally.
  • Material Compatibility. Make sure the HVLP gun is compatible with the type of paint or coating you plan to use.
  • Ergonomics and Adjustability. To achieve precise control, look for an HVLP automotive spray gun with adjustable settings for spray pattern, fluid flow, and air pressure.

Maintenance and Care of HVLP Spray Guns

Proper use and maintenance will ensure longevity, consistent performance, and superior results. Hold the spray gun the correct distance from the surface, typically 6” – 8”, and move the gun smoothly back and forth to avoid drips and runs. Wear a respirator, gloves, and safety glasses at all times when using an HVLP spray gun.

Regularly clean the gun after each use, following the manufacturer's instructions. Use appropriate cleaning solutions and ensure all parts are thoroughly dried before storage.

Conclusion:

HVLP spray guns are powerful tools that offer superior finish quality and efficiency. By understanding their benefits, applications, and how to choose the right one, you can achieve professional results in your painting projects. Explore our range of HVLP spray guns and take your painting endeavors to the next level.
