Clean Air™ Line from DeVilbiss AR

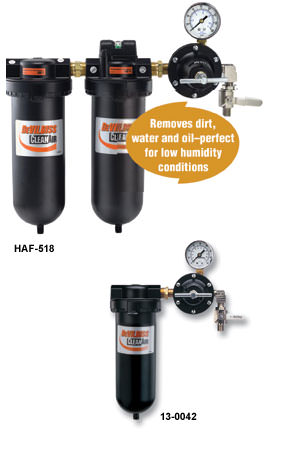

Image of two kinds of air regulator filters, perfect for low humidity conditions Air Line Regulator Filters and Control Units

These Air Regulator Filters will improve the quality of all of your paint jobs. Our filters and Regulation Systems Remove Dirt, Oil and Water from Air Lines down to .01 micron. The removal of dirt and oil prior to the painting process will help to eliminate the need to redo's due to particles in the air line. These units are ideal for low humidity conditions and supply cleaner, drier air to the spray gun in the system.

  Options
  Two-stage filtration system, including centrifugal and coalescer w/ 60 CFM regulator
  100 CFM air line filter
  100 CFM air line filter w/ 60 CFM regulator

Clean Air™ Line Filters and Control Units from DeVilbiss AR

Perfect for low humidity conditions

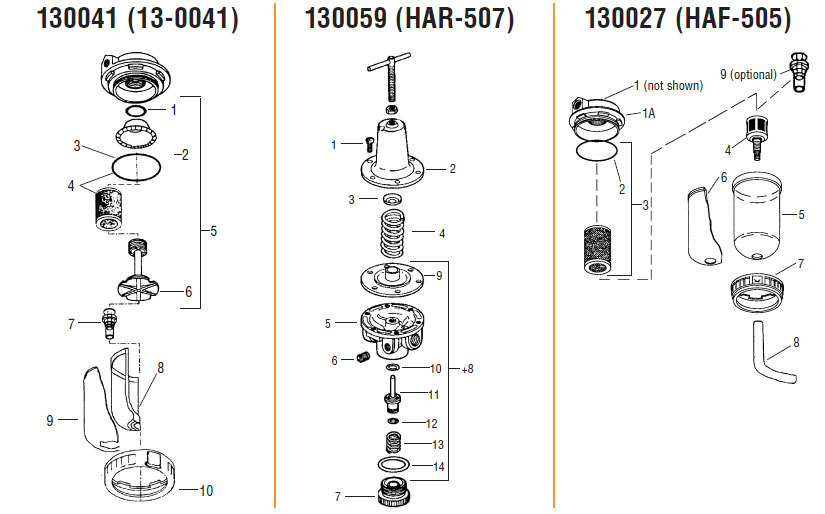

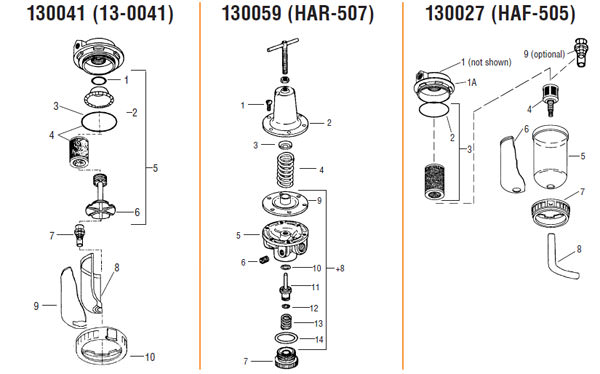

A Break Out View of CleanAir Line Filter Products

Ref. No.
Order No.
Model No.
Description
Parts Req.
1 - - Gasket 1
2 - - Baffle 1
3 - - Bowl O-Ring (comes w/#4) 1
4 190727 HAF-6 Filter & O-Ring Kit 1
5 190856 HAF-26 Baffle Kit 1
6 - - Element Retainer 1
7 190766 HAF-11 Manual Flexible Drain 1
8 190763 HAF-8 Transparent Plastic Bowl 1
9 191417 HAF-19 Bowl Guard 1
10 190869 HAF-409 Clamp Ring Assembly 1

1 - - #10-32x9/16 Fllister Hd. Screw 6
2 191429 HAR-14 Cover 1
3 - - Spring Button 1
4 - - Diaphragm Spring 1
5 - - Body 1
6 - - Pipe Plug 1/4" NPT(M) 1
7 - - Bottom Plug 1
+8 191554 KK-4977 Repair Kit (Does NOT include #5 & #6) 1
9 Repair Kit Part Diaphragm Assembly 1
10 Repair Kit Part O-Ring 1
11 Repair Kit Part Valve 1
12 Repair Kit Part O-Ring 1
13 Repair Kit Part Spring 1
14 Repair Kit Part O-Ring 1

1 190883 HAF-404 Filter Change Indicator 1
1A - - Cover 1
2 - - O-Ring (Comes w/#3) 1
3 190845 HAF-28 Filter & O-Ring 1
4 190771 HAF-18 Automatic Drain (standard) 1
5 190763 HAF-8 Plastic Bowl 1
6 191417 HAF-19 Metal Bowl Guard 1
7 190869 HAF-409 Clamp Ring 1
8 - - 1/2 x 3/8 Vinyl Tubing-6 ft. 1
9 190766 HAF-11 Manual Drain (optional) 1

Notes: The regulator on CleanAir Units manufactured prior to 9/1997 was 13-0045 (HAR-506).

HAR-600 includes HAR-507 Regulator, GA-288 Gauge and VA-542 Ball Valve
