Breathable Air Filtration Products

products

Devilbiss Auto Refinishing

  Description         Removes Dirt
to 5 microns   		 Removes Water
and Oil Aerosols		 Removes
Humidity      		 Removes
Odor

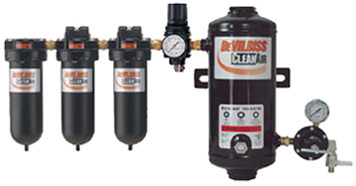

 		 3-stage filtration with desiccant dryer system Yes Yes Yes Yes

 		 3-stage filtration system Yes Yes No Yes

 		 Desiccant Retrofit System Yes, when used with DAD-500 or HAF-518 Yes, when used with DAD-500 of HAF-518 Yes, when used with DAD-500 Yes



Breathable Air Filtration

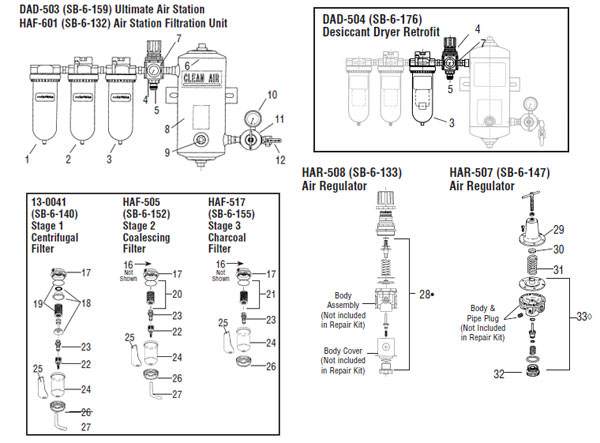

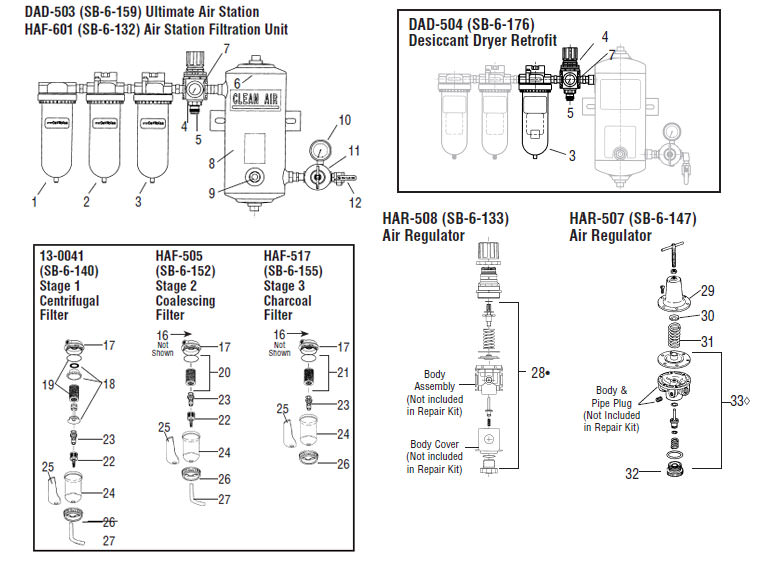

Ref. No. Order No. Model No. Description Parts Req.
1 130041 13-0041 Air Filter/Separator 1
2 130027 HAF-505 Coalescing Filter 1
3 130086 HAF-517 Charcoal Filter 1
4 130091 HAR-508 Flow-Thru Regulator 1
5 190939 MPV-424 Breathable Air Quick Release Socket 1
6 190953 DAD-8 Screen (Not Shown) 1
7 190093 GA-316 Gauge 1
8 190877 PT-417 Desiccant Tank
(without desiccant, includes Ref. No. 6)		 1
9 190895 DAD-400 Humidity Indicator
(1 Humidity Indicator Paper Included)		 1
10 190564 GA-288 Gauge 1
11 130059 HAR-507 Air Regulator 1
12 240039 VA-542 Ball Valve 1
13 190831 DAD-1 Replacement Desiccant (Not Shown)
(1 Humidity Indicator Paper Included)		 1
14 130030 DAD-600 Desiccant Tune-Up Kit (Not Shown) Includes 1
ea: DAD-1, DAD-3, HAF-6 & HAF-507		 1
15 190939 MPV-424 Quick Release Socket (Not Shown) 1
16 190883 HAF-404 Filter Change Indicator (Not Shown) 1
17     Cover 1
18 190856 HAF-26 Baffle Kit 1
19 190727 HAF-6 Filter & O-Ring Kit 1
20 190845 HAF-28 Filter & O-Ring Kit 1
21 190937 HAF-36 Filter & O-Ring Kit 1
22 190771 HAF-18 Automatic Drain (Standard) 1
23 190766 HAF-11 Manual Drain (Optional) 1
24 190763 HAF-8 Plastic Bowl 1
25 191417 HAF-19 Metal Bowl Guard 1
26 190869 HAF-409 Clamp Ring 1
27     1/2 x 3/8 Vinyl Tubing, 6 ft. 1
28• 190938 KK-5045 Diaphragm Repair Kit 1
29 191429 HAR-14 Cover 1
30     Spring Button 1
31     Diaphragm Spring 1
32     Bottom Plug 1
33♦ 191554 KK-4977 Repair Kit 1

•Diaphragm Repair Kit 190938 (KK-5045): Thrust Washer, Adjusting Screw Assembly, Main Spring, Slip Ring, Diaphragm Assembly, Valve Assembly, Valve Spring, Bottom Plug O-Ring
♦Repair Kit 191554 (KK-4977): Diaphragm Assembly, O-Ring, Valve, O-Ring, Spring, O-Ring
