2-Stage Filter Systems

130523_2stage

Air Filtration / Regulation Systems

  • Compact and effective - perfect for cramped shop spaces
  • Removes dirt, water and oil from air lines to 0.01 microns - assures superior finishes
  • Quick change bowls and air inlet valve accommodate rapid, trouble free maintenance without shutting off main shop air
  • Combine with the CT-30 desiccant dryer to create a CT Plus 5-stage air filter system

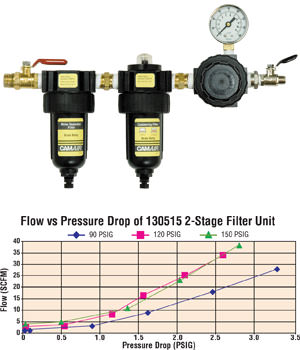

2-Stage Filter System

2-Stage Air Filter

Air Flow: 65 SCFM @ 90 PSIG

Max Pressure: 150 PSIG

Max. Temperature: 150˚F

Regulator

Air Flow: 65 SCFM @ 100 PSIG

Max Pressure: 250 PSIG

Pressure Range: 2–125 PSIG

Max. Temperature: 175˚F

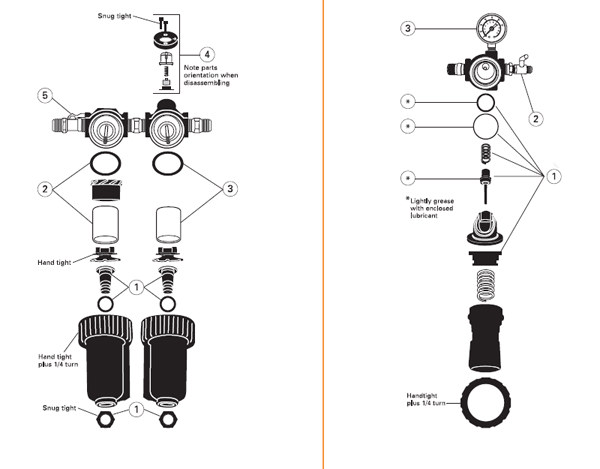

2-Stage Filter Parts & Accessories

2 Stage Filter Systems with Regulator

Ref. No.
Order No.
2-Stage
Description
Parts Req.
1 130519 Filter Set Parts Drain Kit (1 set) 1
2 130517 Filter Set Parts Filter Element, Water 1
3 130518 Filter Set Parts Filter Element, Coalescing 1
4 130520 Filter Set Parts Indicator Kit, Coalescing 1
5 VA-595 Filter Set Parts Shut-off Valve 1

1 130521 Regulator Parts Regulator Kit 1
2 VA-594 Regulator Parts Shut-off Valve 1
3 GA-288 Regulator Parts Gauge 1
