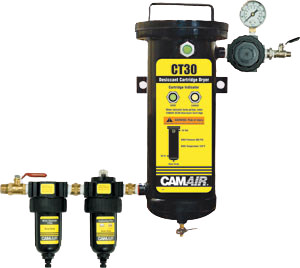

CT Plus™ 5-Stage Filter System

First stage filter removes oil, water and dirt down to 40 microns
Second stage coalescer removes oil vapors and dirt particles down to .01 microns
CT30 desiccant tank repeats dirt and oil aerosol removal and removes humidity
30 CFM capacity at 100 PSI

	Description
	CT Plus™ 5-stage compressed air treatment and drying center
	Replacement filter element, water
	Replacement filter element, coalescing
	DC30 replacement desiccant cartridge
	Regulator Assembly
	CT Plus™ Tune Up Kit

CT PLUS™ 5-Stage Filter

Air Inlet: 65 SCFM @ 90 PSIG

Air Outlet: 1/2" NPT (Female)

Air Flow Capacity: 30 CFM

Max. Operating Pressure: 200 PSIG (14 Bar)

Max. Temperature: 150˚F (65.6˚C)

Humidity Indicator: Green- OK, Yellow- Replace Desiccant

Water Vapor Removal: -40˚F Dew point

Partical Removal: .01 micron

Manual Drain: Included

Air Flow: 65 SCFM @ 100 PSIG

Max Pressure: 250 PSIG

Pressure Range: 2–125 PSIG

Max. Temperature: 175˚F

Air Flow: 65 SCFM @ 100 PSIG

Max Inlet Pressure: 250 PSIG

Pressure Range: 2–125 PSIG

Max. Temperature: 175˚F

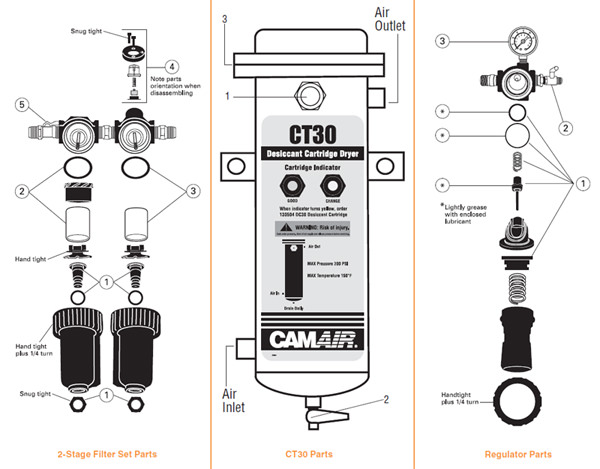

Ref. No.

Order No.

CT Plus™

Description

Parts Req.

1	130519	2-Stage Filter Set Parts	Drain Kit (1 set)	1
2	130517	2-Stage Filter Set Parts	Filter Element, Water	1
3	130518	2-Stage Filter Set Parts	Filter Element, Coalescing	1
4	130520	2-Stage Filter Set Parts	Indicator Kit, Coalescing	1
5	VA-595	2-Stage Filter Set Parts	Shut-off Valve	1

1	130505	CT30 Parts	Humidity Indicator (1 Humidity Indicator Paper included)	1
2	130511	CT30 Parts	Drain (Manual)	1
3	130510	CT30 Parts	Gasket	1
4 •	130504	CT30 Parts	Desiccant Cartridge (not shown)	1

1	130521	Regulator Parts	Regulator Kit	1
2	VA-594	Regulator Parts	Shut-off Valve	1
3	GA-288	Regulator Parts	Gauge	1
