The DeVilbiss PROLite spray gun delivers exceptional performance and color matching capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials.

This PROLite performance is achieved utilizing high-capacity air passages and a linear air valve to provide even and unrestricted flow of compressed air through the gun body, producing superior atomization with consistent droplet distribution throughout the entire spray pattern.

PROLite is precision-built using the highest quality component materials for a longer working life in all professional spray environments. The dropforged aluminum body, anodized finish, high-grade stainless steel fluid nozzles and needles, and nickel plated brass air caps all contribute to a gun that will last in the most extreme environments. When routine maintenance is needed, the PROLite’s easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest color match standards to ensure that you get the job done right — the first time and every time.nance is needed, the PROLite’s easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest color match standards to ensure that you get the job done right — the first time and every time.

Features:

  • Lightweight design delivers a uniform spray pattern and atomization distribution for an exceptional quality finish that professional painters demand
  • Range of advanced air cap technologies for excellent application performance with the latest waterborne and solventborne coatings
  • Ergonomic handle design with reduced trigger travel to decrease operator fatigue
  • Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings
  • Drop-forged aluminum, anodized gun body with removable air baffle for a longer working life
  Air Cap Needle/Nozzle Gauge Cup Type
  HV30 1.2, 1.3 HAV-555 NONE
  HV30 1.3, 1.4 HAV-555 NONE
  HV30 1.2, 1.3 HAV-555 900ml, ALUMINUM
  HV30 1.2, 1.3 HAV-555 900ml, ALUMINUM
  HV30, TE20 1.3, 1.4, 1.5 HAV-555 NONE
  TE10, TE20 1.2, 1.3, 1.4 HAV-555 900ml, ALUMINUM
  TE10, TE20 1.2, 1.3, 1.4 HAV-555 NONE
  HV30, TE25 1.2, 1.3, 1.4 HAV-555 NONE



PROLite Gravity
Weight (gun only) 445g
Gun Body Anodized Aluminum
Air Cap Plated Brass
Air Cap Retaining Ring & Knobs Clear Anodized Aluminum
Fluid Nozzle Stainless Steel
Fluid Needle Stainless Steel
Air Inlet Thread 1/4" Universal

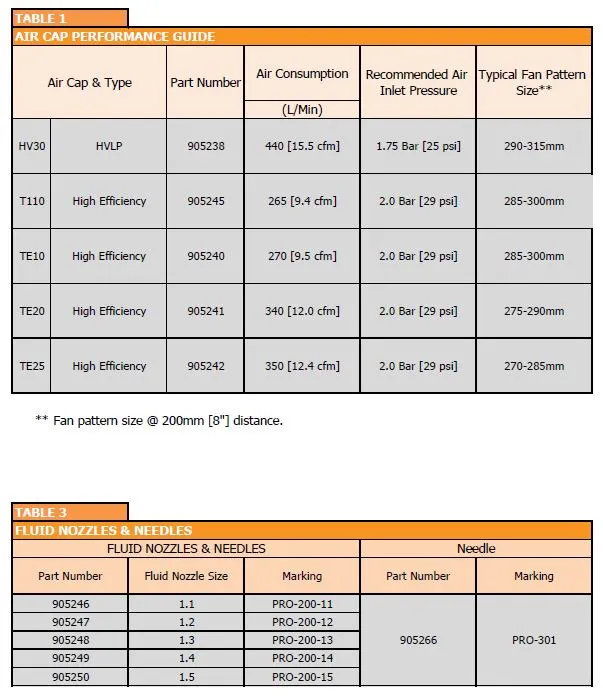

Air Cap Offerings

  Recommended Inlet Pressure Max Air Consumption Fan Pattern Size
Air Cap Atomization Type Applications PSI BAR SCFM SLDM in mm Nozzle Sizes
TE10 High Efficiency Basecoats, Clearcoats 20-35 1.4-2.4 10.9 310 11.0-12.0 285-300 1.1-1.5mm
TE20 High Efficiency Basecoats, Clearcoats 16-26 1.1-1.8 12 340 11.0-11.5 275-290 1.1-1.5mm
TE25 High Efficiency Basecoats, Clearcoats 22-29 1.5-2.0 12.4 350 10.5-11.0 270-285 1.1-1.5mm
T110 High Efficiency Basecoats, Clearcoats 22-29 1.5-2.0 9.4 265 11.0-12.0 285-300 1.1-1.5mm
HV30 HVLP Basecoats, Clearcoats 14-25 1.0-1.75 15.5 440 11.5-12.5 290-315 1.1-1.5mm
PROLite Gravity
Part Number Description Replaces Part No. Description
905038 PROLITE GRAVITY (HV30, 1.2, 1.3, UNCUPPED) 703892 TEKNA BASECOAT UNCUPPED (1.2, 1.3)
905039 PROLITE GRAVITY (HV30, 1.3, 1.4, UNCUPPED) 703893 TEKNA BASECOAT UNCUPPED (1.3, 1.4)
905040 PROLITE GRAVITY (HV30, 1.2, 1.3, CUPPED) 703894 TEKNA BASECOAT W/CUP (1.2, 1.3)
905041 PROLITE GRAVITY (HV30, 1.3, 1.4, CUPPED) 703895 TEKNA BASECOAT W/CUPPED (1.3, 1.4)
905042 PROLITE GRAVITY (HV30, TE20, 1.3, 1.4, 1.5, UNCUPPED) 703517 TEKNA PROLITE UNCUPPED GUN (1.3, 1.4, 1.5, TE20, HV30)
905042 PROLITE GRAVITY (HV30, TE20, 1.3, 1.4, 1.5, UNCUPPED) 703582 TEKNA PRO UNCUPPED GUN (1.3, 1.4, 1.5, TE20, HV30)
905043 PROLITE GRAVITY (TE10, TE20, 1.2, 1.3, 1.4, CUPPED) 703566 TEKNA PROLITE GUN/CUP (1.2, 1.3, 1.4, TE10, TE20)
905044 PROLITE GRAVITY (TE10, TE20, 1.2, 1.3, 1.4, UNCUPPED) 703567 TEKNA PROLITE UNCUPPED (1.2, 1.3, 1.4, TE10, TE20)
905044 PROLITE GRAVITY (TE10, TE20, 1.2, 1.3, 1.4, UNCUPPED) 703581 TEKNA PRO UNCUPPED (1.2, 1.3, 1.4, TE10, TE20)
905045 PROLITE GRAVITY (HV30, TE25, 1.3, 1.4, 1.5, UNCUPPED) 704198 TEKNA CLEARCOAT UNCUPPED (1.2, 1.3, 1.4, TE25, HV30)
